Precision Lock Washers & Fastening Solutions
Certified mechanical locking hardware, helical springs, wedge systems, and corrosion-resistant star washers engineered for high-vibration applications across Luzon, Visayas, and Mindanao.
Engineering White Paper: Mechanical Locking Integrity in the Philippine Archetype
A comprehensive analysis of dynamic loading, high salinity, galvanic action, and seismic parameters governing fastener selection across key industrial zones in the Philippines.
Tropical Marine Atmospheric Corrosivity
The Philippine archipelago operates within C4 to CX extreme atmospheric categories under ISO 12944-2. Marine ports like Manila International Container Terminal, Batangas, and Subic Bay subject bolting hardware to salt fog, constant humidity (>85%), and coastal wind shear. Standard zinc plating rapidly degrades, necessitating SS316 (A4-80), DIN 25201 wedge locks, or heavy-duty fluoropolymer PTFE Xylan coatings.
Cyclic Seismic & Vibration Stress
Situated on the Pacific Ring of Fire, infrastructure in Davao, Cebu, and Metro Manila faces dynamic harmonic vibration and seismic shifts. Standard flat washers fail to retain preload. Applying DIN 25201 Double Stack Wedge-Locking Washers uses tension rather than friction, leveraging cam angles (α) greater than bolt thread pitches (β) to eliminate self-loosening under continuous transverse vibration.
Renewable & Geothermal Expansion
With massive investments in Leyte and Negros geothermal fields, fastener integrity is challenged by hydrogen sulfide (H2S), hot sulfur steam, and acidic condensate. Our metallurgical program provides specialized Silicon Bronze, Phosphor Bronze, and Inconel spring locking assemblies designed specifically to prevent galvanic stress corrosion cracking in geothermal turbines.
Technical Specifications & Material Selection Matrix
Recommended standard configurations for mechanical engineering contractors, mining operators, and marine fabrication units.
| Lock Washer Standard | Base Material Selection | Surface Treatment / Coating | Hardness Range | Primary Application in the Philippines |
|---|---|---|---|---|

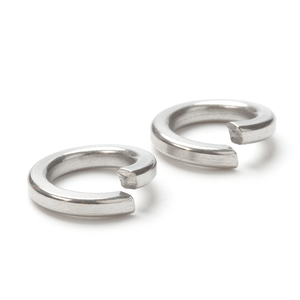

| DIN 127B / DIN 7980 (Split Spring) | A2-70 (304), A4-80 (316), Spring Steel 65Mn | Passivated, HDG (ASTM A153), Zinc Flake | 44 - 51 HRC (Carbon), HV 200+ (SS) | Substation steel towers, transformer switchgears, structural assemblies in Luzon grid. |
| DIN 25201 (Double-Stack Wedge) | Carbon Steel SK5/1045, AISI 316 / 1.4404 | Geomet 500, Delta Protekt, Plain Passivated | ≥ 465 HV1 (Pre-hardened for Grade 10.9/12.9) | LRT/MRT rail track anchors, bridge vibration dampeners, mining crushers in Surigao. |
| DIN 6798 / DIN 6797 (Internal/External Star) | AISI 301, 304, CuSn6 Phosphor Bronze | Electrolytic Tinned, Bright Passivation | 350 - 430 HV | Marine electronics ground continuity, offshore telecommunication array grounding. |
| Xylan / PTFE Heavy Split | ASTM A193 B7 Alloy Steel, Chrome-Moly | PTFE Xylan 1070 / 1424 Multi-coat Blue/Green | 38 - 46 HRC | Malampaya offshore platforms, Batangas petrochemical refineries, subsea manifolds. |
| Custom Flat Elastic Seals | PTFE, EPDM, Nitrile NBR, Heavy Neoprene | Raw Die-Cut / Molded | 60 - 80 Shore A | Agricultural processing plants, food & beverage packaging line fluid seals in Bulacan. |
Philippine Market Growth Dynamics & Procurement Drivers
Analysis of emerging industrial demand channels across major economic corridors.
National Railway & Highway Connectivity
The Build-Better-More program (including the North-South Commuter Railway and Metro Manila Subway) has generated an unprecedented demand for pre-stressed structural fasteners. EN 14399-4 and DIN 25201 assemblies are mandated across precast concrete segment linkages to handle high-frequency axial loads without backing off.
Offshore Wind & Solar Farm Transition
With green energy initiatives expanding in Ilocos Norte, Guimaras, and solar parks across Central Luzon, fasteners must guarantee a 25-year service life under UV radiation and monsoonal winds. Hot-dip galvanized and A4 marine lock washers ensure torque tension maintenance on ground mounting racks.
Naval Architecture & Ship Repair
As one of the world's leading shipbuilding nations, drydock hubs in Subic, Cebu, and Bataan depend on PED-compliant fastener fabrications. Standard spring lock washers are paired with ASTM A193 B8M/B8 studs to provide leak-free joint resilience against hydraulic surge pressure in ballast tanks.
Frequently Asked Questions by Philippine Industrial Buyers
Practical considerations addressing import logistics, DPWH standard compliance, and metallurgy.
Q: How do your lock washers comply with DPWH and PEZA project requirements?
Our fasteners are manufactured under strict ISO 9001 and PED certification guidelines. Each shipment sent to the Port of Manila or Batangas includes an EN 10204 Type 3.1 Mill Test Certificate guaranteeing mechanical yield, elongation, tensile strength, and exact chemical composition, meeting DPWH standard specifications for bridges and highway structures.
Q: What is the optimal coating choice for coastal installations in the Visayas?
For high-salinity marine air in coastal Cebu or Iloilo, standard electro-galvanized (zinc clear) finishes fail within months. We advise either AISI 316 Stainless Steel (A4-80) with natural passivated state, Hot-Dip Galvanizing (HDG) per ASTM A153, or PTFE/Fluoropolymer coatings for high-pressure process flanges.
Q: Why are wedge-lock washers preferred over split spring washers in mining heavy machinery?
Split spring washers rely strictly on friction and spring rate, which quickly relaxes under severe impact loading. Wedge-lock washers (DIN 25201) utilize geometry: their internal cam angle is greater than the bolt thread angle. As dynamic vibration tries to back off the bolt, the cams expand, effectively locking the assembly through mechanical tension.
Q: Can you supply containerized mixed lots directly to regional ports like Davao, Cagayan de Oro, or Cebu?
Yes. We support customized multi-SKU sea freight consolidation. We regularly export matched sets—combining stud bolts, heavy hex nuts, DIN 127 washers, and forged pipe flanges—in seaworthy palletized drums directly cleared to Luzon, Visayas, and Mindanao ports.
Why Partner With Us: World-Class Manufacturing Pedigree
Direct manufacturer capabilities ensuring lower total cost of ownership, zero-defect quality control, and international project compliance.
In-House Tooling & Stamping Lines
From M2 micro-washers for cleanroom electronics to massive M100 structural locking discs, our advanced progressive stamping and precision cold-heading cells run 24/7. Continuous computerized monitoring guarantees flat tolerance, tooth profile fidelity, and uniform concentricity across millions of units.
Atmospheric Heat Treatment & Hardness Verification
Improper heat treating results in catastrophic hydrogen embrittlement or lost elasticity. Our computer-controlled continuous mesh-belt furnaces execute quench-and-temper cycles with sub-zero post-treatment to achieve precise Rockwell C hardness targets without stress-cracking liabilities.
Third Largest Exporter of Heavy Fasteners
Equipped with expansive galvanizing plants, extensive hot-dip capabilities, and full NDT (Magnetic Particle, Ultrasonic) facilities, we bridge the gap between heavy industrial forging and precision fastener manufacture, trusted by major global EPCs and local distributors.
Ready to Secure Your Critical Infrastructure Fastenings?
Our metallurgical and structural engineering team is available to assist your procurement team with drawing reviews, project submittals, and volume wholesale pricing for delivery anywhere in the Philippines.
