| Part No. | Material | Finish |
|---|---|---|

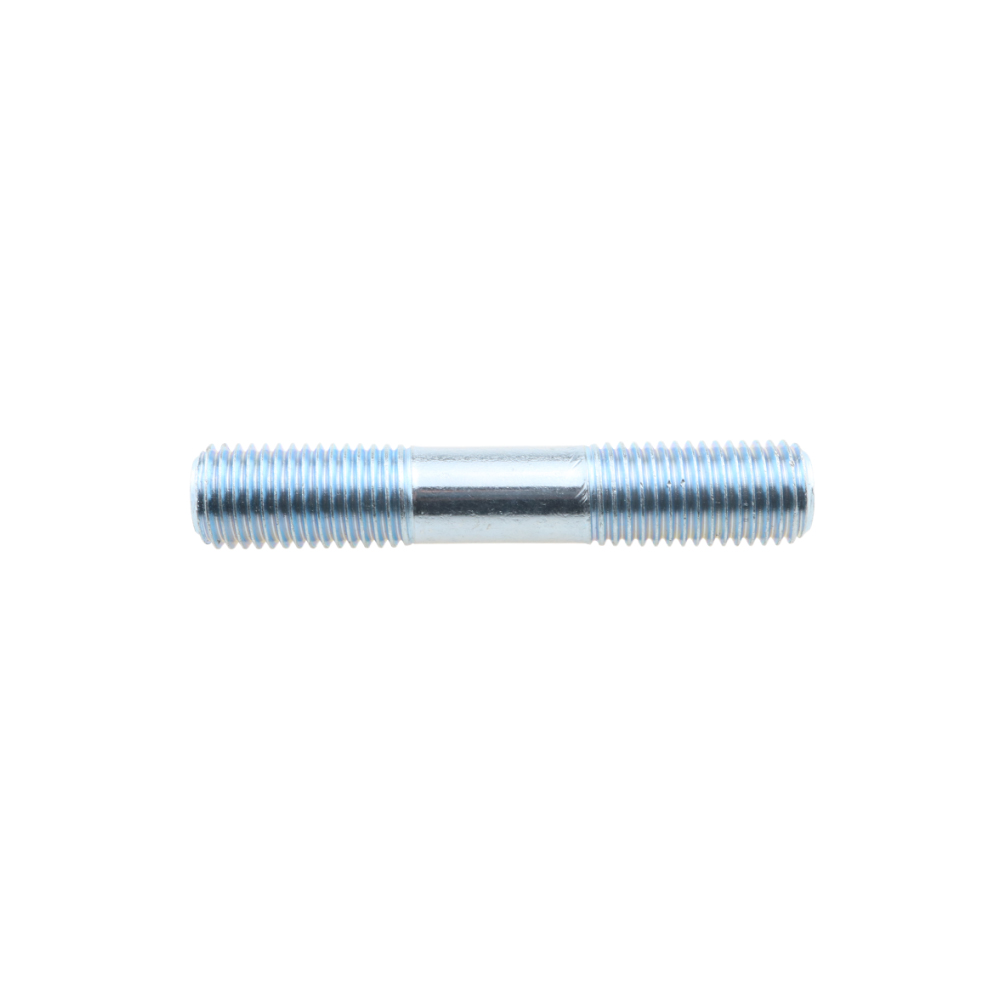

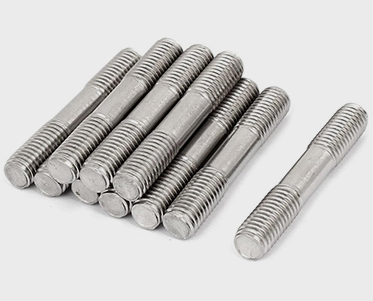

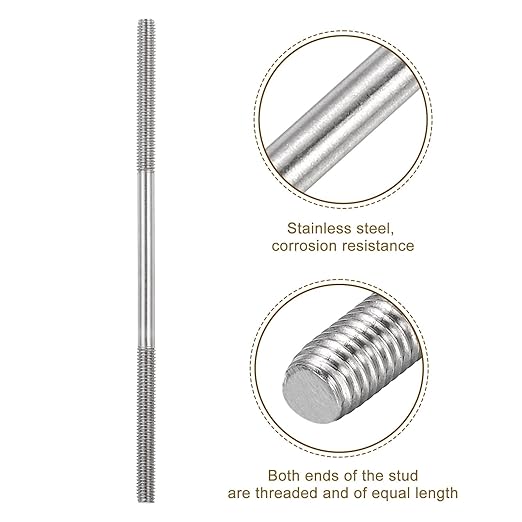

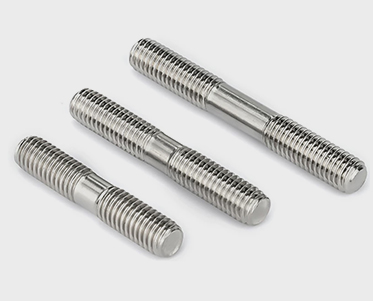

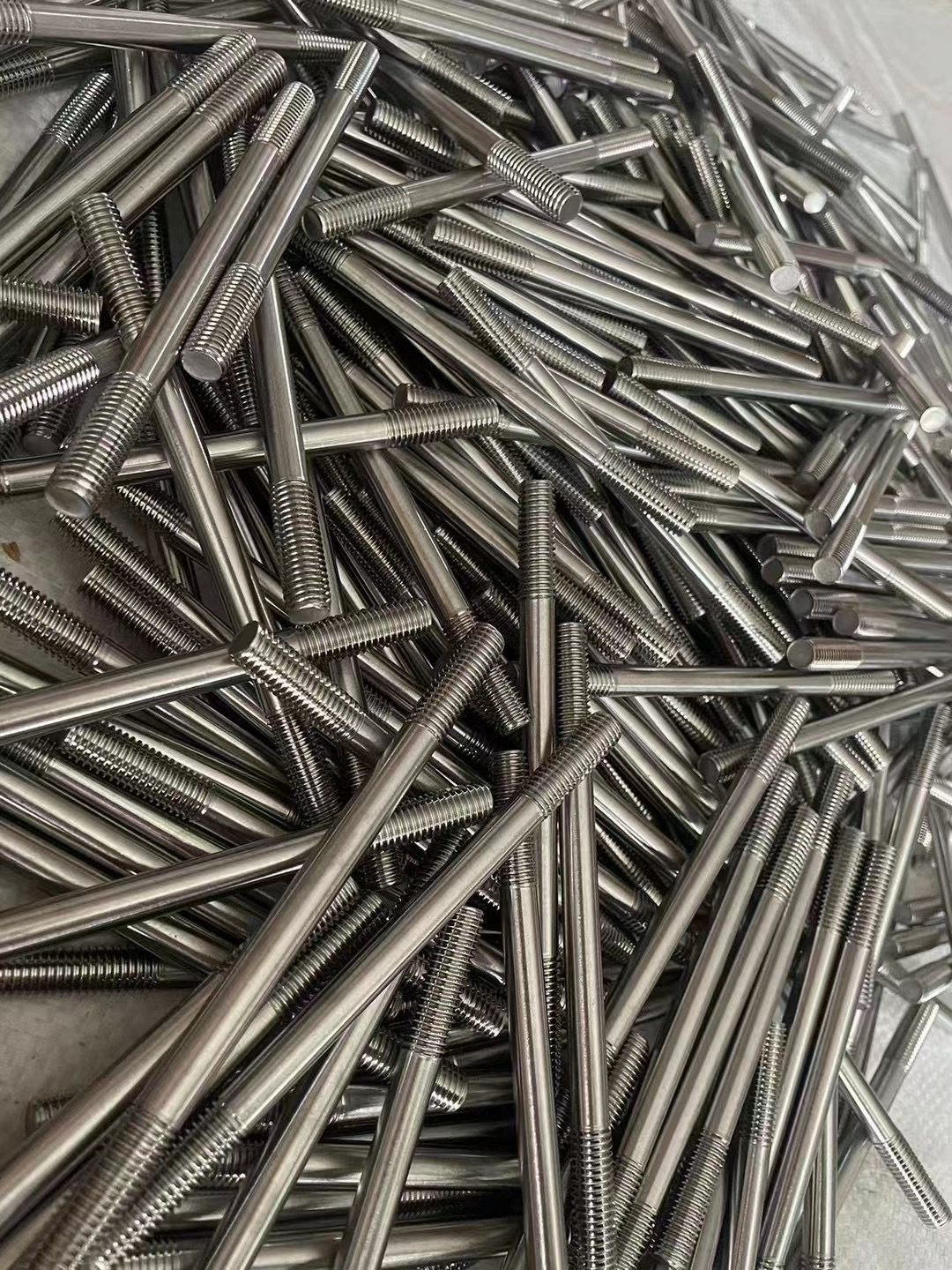

| STUD BOLT | Stainless Steel | Plain |

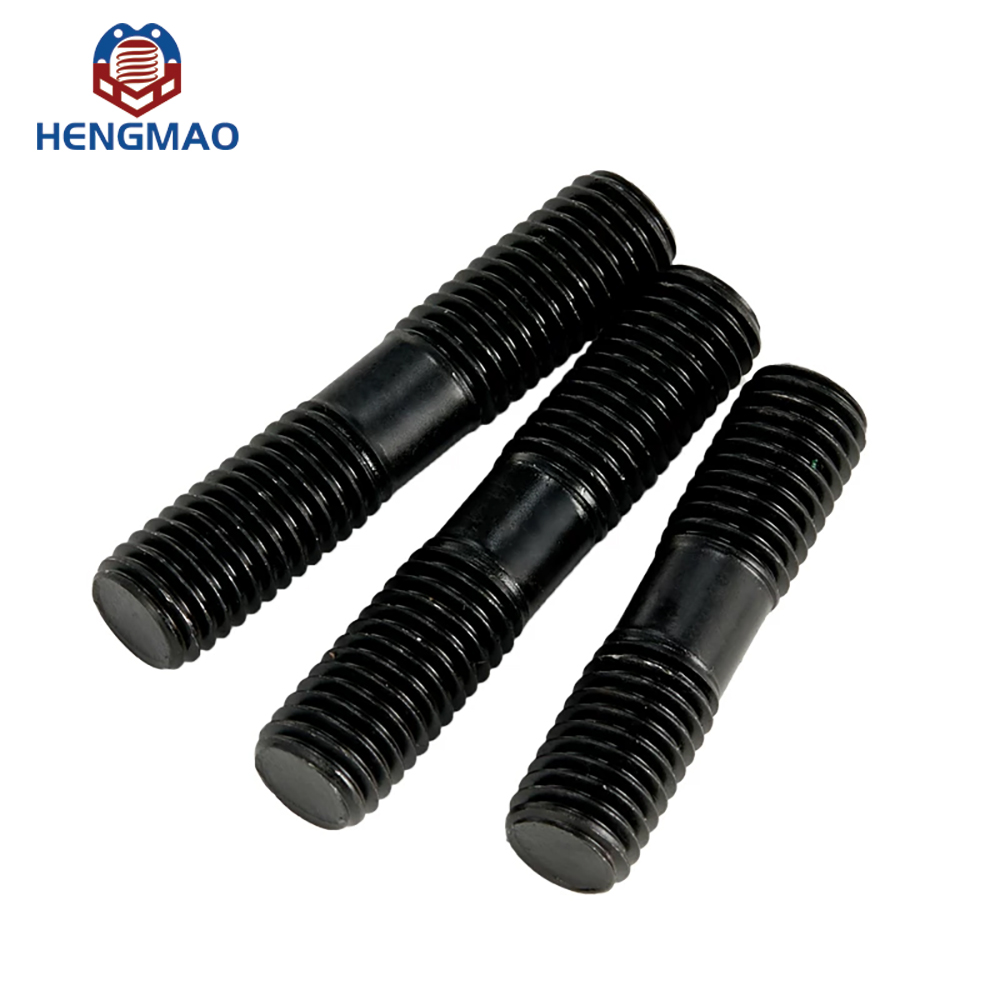

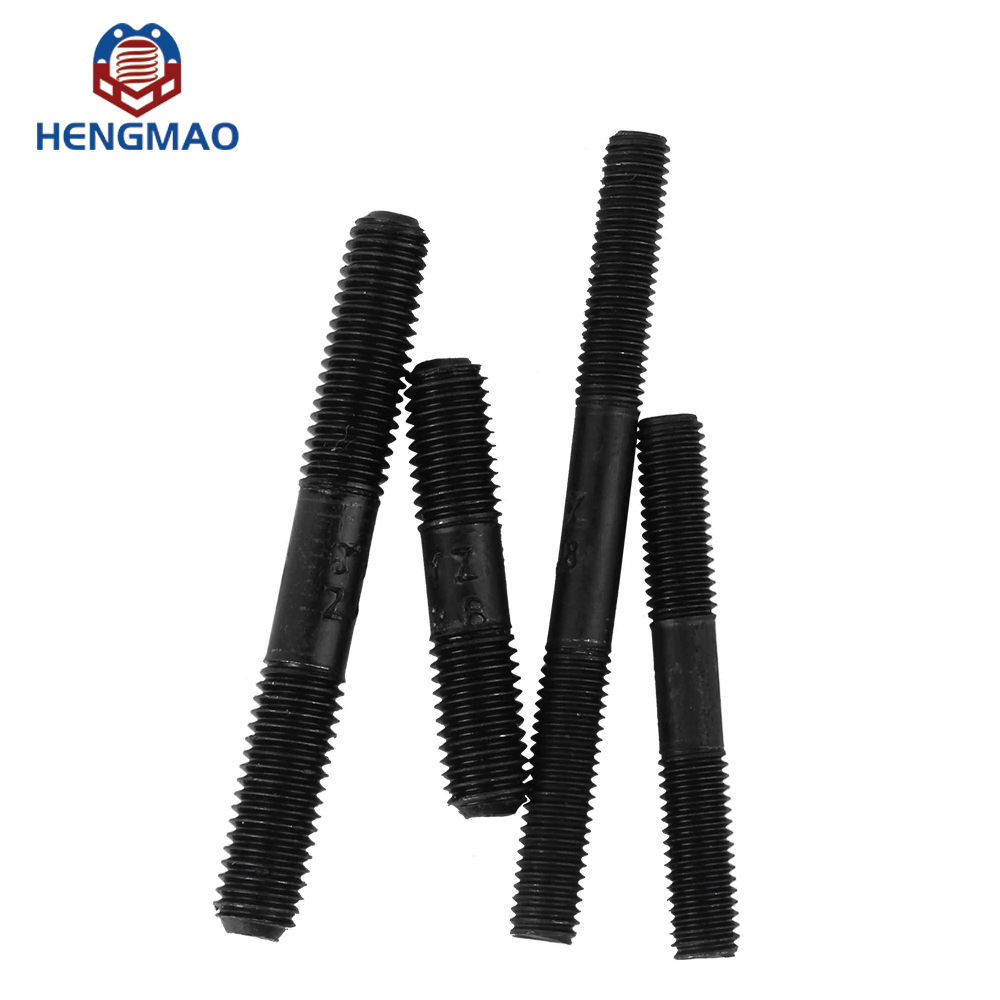

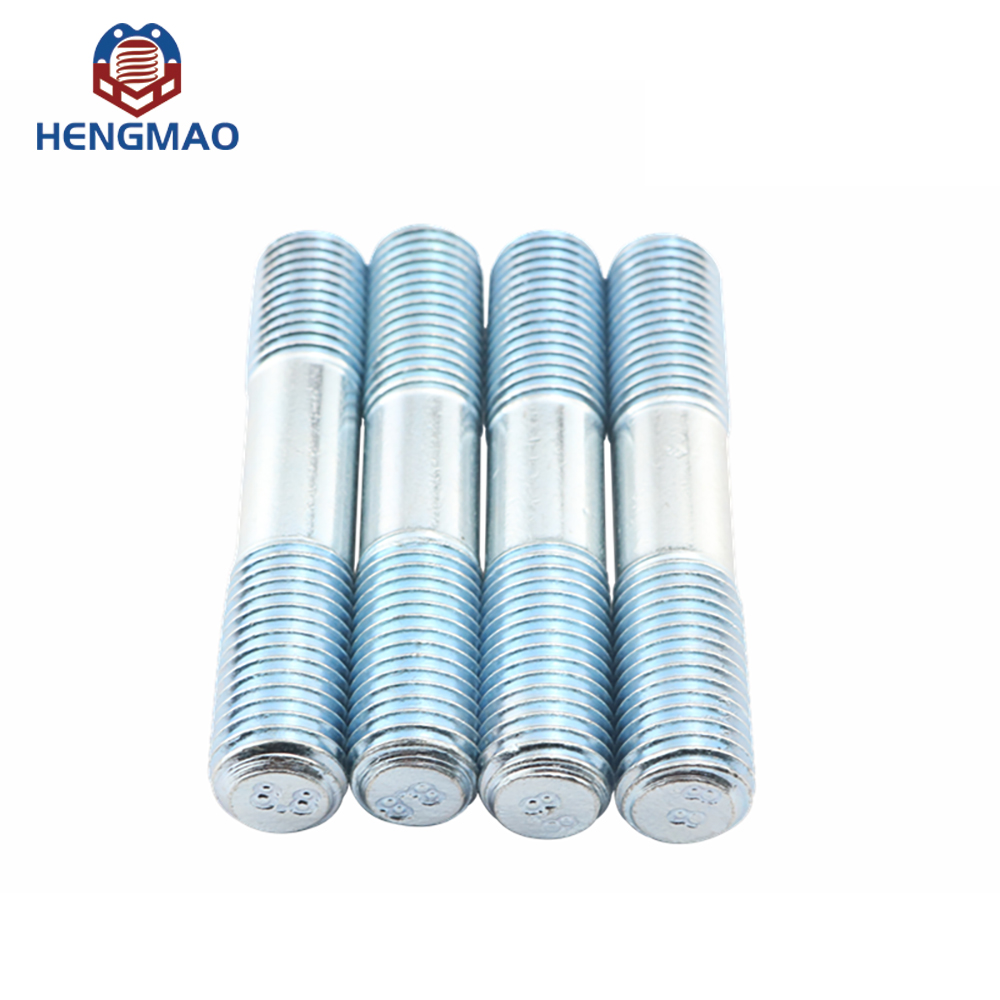

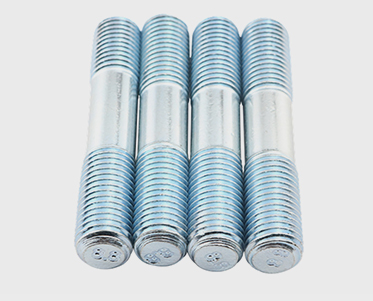

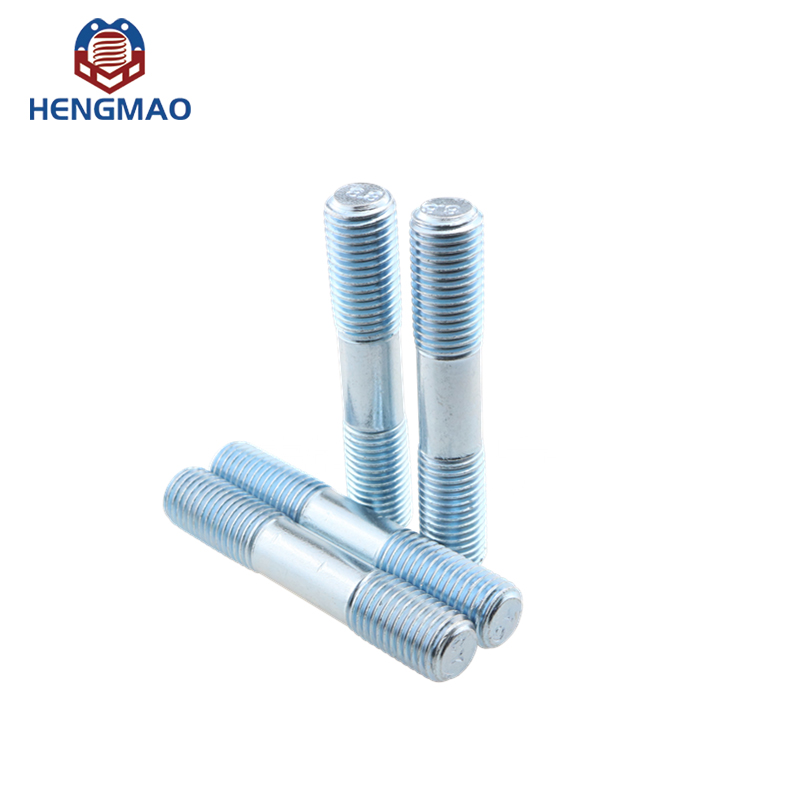

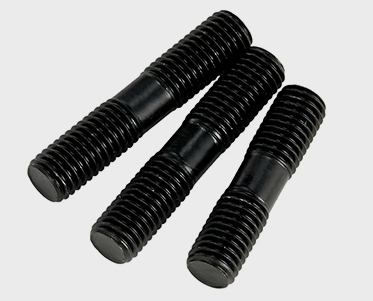

| Carbon Steel | Zinc Plated, Black |

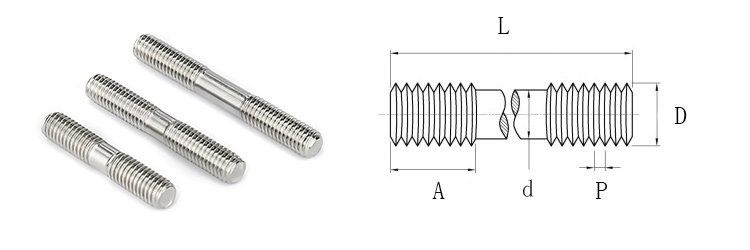

| D | P | d | L |
|---|---|---|---|
| M6 | 1 | 5.212-5.324 | 20/25/30/35/40/45/50/60/65/70/75/80/85/90/95/100/110/120/130/140/150/160/170/180/190/200 |
| M8 | 1.25 | 7.042-7.160 | 20/25/30/35/40/45/50/60/65/70/75/80/85/90/95/100/110/120/130/140/150/160/170/180/190/200/250 |
| M10 | 1.5 | 8.85-8.95 | 25/28/30/35/40/45/50/60/65/70/75/80/85/90/95/100/110/120/130/140/150/160/170/180/190/200/250 |
| M12 | 1.75 | 10.679-10.829 | 30/35/40/45/50/55/60/65/70/75/80/85/90/95/100/110/115/120/125/130/135/140/145/150/160/170/180/190/200/210/230/240/250/270/290/300 |
| M14 | 2 | 12.503-12.663 | 40/45/50/55/60/65/70/75/80/85/90/95/100/105/110/120/130/140/150/160/170/180/190/200/220/240/250/280 |
| M16 | 2 | 14.503-14.663 | 40/45/50/55/60/65/70/75/80/85/90/95/100/105/110/120/125/130/135/140/145/150/155/160/165/170/175/180/190/195/200/210/220/225/230/240/250/255/260/270/280/290/300 |
| M18 | 2.5 | 16.164-16.334 | 40/45/50/55/60/65/70/75/80/85/90/95/100/105/110/115/120/125/130/135/140/150/160/170/180/190/200/210/220/230/240/250/260/270/300 |
| M20 | 2.5 | 18.164-18.334 | 40/45/50/55/60/65/70/75/80/85/90/95/100/105/110/115/120/125/130/135/140/145/150/155/160/165/170/175/180/185/190/195/200/205/210/220/225/230/240/250/255/260/270/280/290/300/310 |
| M22 | 2.5 | 20.164-20.334 | 50/55/60/65/70/75/80/85/90/95/100/105/110/115/120/125/130/135/140/145/150/160/170/180/190/200/210/220/215/220/225/230/240/250/260/270/280/290/300 |
| M24 | 3 | 21.803-22.003 | 50/55/60/65/70/75/80/85/90/95/100/105/110/115/120/125/130/135/140/145/150/155/160/165/170/175/180/185/190/195/200/205/210/220/215/220/225/230/240/245/250/255/260/265/270/280/290/295/300 |
| M27 | 3 | 24.803-25.003 | 80/90/100/105/110/115/120/125/130/135/140/145/150/155/160/165/170/175/180/185/190/195/200/205/210/220/215/220/225/230/240/245/250/255/260/270/280/285/290/295/300 |
| M30 | 3.5 | 27.462-27.674 | 80/90/100/105/110/115/120/125/130/135/140/145/150/155/160/165/170/175/180/185/190/195/200/205/210/215/220/225/230/235/240/245/250/255/260/270/280/285/290/295/300 |
| M33 | 3.5 | 30.462-30.674 | 100/110/120/130/135/140/145/150/155/160/165/170/175/180/185/190/195/200/205/210/215/220/225/230/235/240/245/250/255/260/270/280/290/300 |
| M36 | 4 | 33.118-33.342 | 120/130/140/150/160/170/180/190/200/210/220/225/230/240/250/255/260/270/280/290/300 |
| M39 | 4 | - | 170/180/200/210/220/230/240/250/260/280/300 |

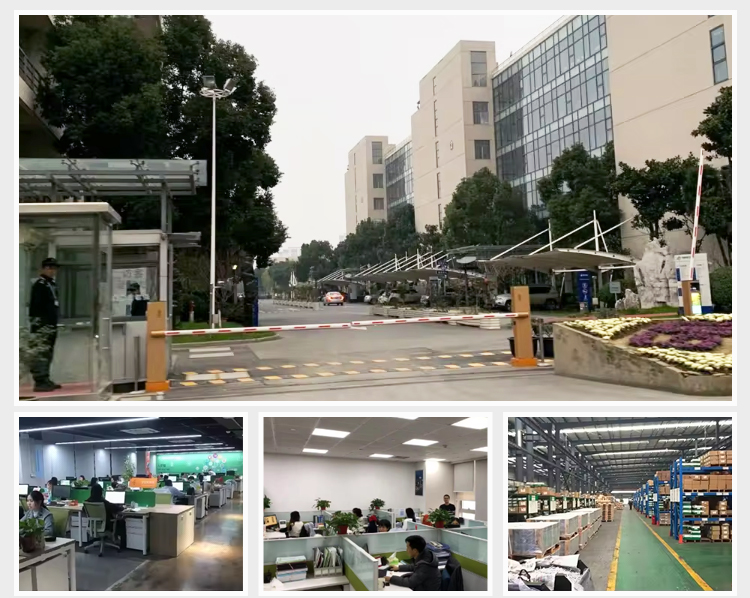

Wuxi Hengmao Metal Products Co.,Ltd. is established in 2018,and specializing in producing and exporting all kinds of fasteners. Our product range in standard fasteners GB, DIN, ANSI, JIS and non standard. Our products are made of all kinds of material as 304 stainless steel, 316 Stainless Steel, Carbon Steel, Alloy Steel, Solid Brass and Aluminum. The surface coating includes: Class 4 Mechanical Galvanised, Ruspert, Dacromet,Teflon, Hot Dipped Galvanised, Zinc Plating, Nickel Plating , Brass Plating and Chromium plating. The strength of the products are 4.8 grade, 6.8 grade, 8.8 grade, 10.9 grade and 12.9 grade.
Our products sell well all over the world. The high quality products and excellent service are well recognized by customers both at home and abroad. Our company has a team of experienced technicians that continues to improve the products to meet the increasing need of consumers .Our company always adheres to the operating principle of technology orientation and quality first and continues to improve its own capabilities and market competitiveness. It builds up the confidence of customers with first class products and perfect services.
